CT without contrast
โข
Usually for detecting kidney stones, certain types of internal bleeding (hemorrhage) , bowel obstructions, and fractures
โข
Its speed makes it invaluable in emergency medicine
โข
Follow-up non-contrast CT abdomen studies are highly accurate in the detection of cancer related findings in patients with an established cancer diagnosis
โข
Except in cases where vascular involvement is suspected
โข
CT with intravenous (IV) contrast
โฆ
1st choice diagnostic tool for studying acute abdominal pain
โฆ
High diagnostic performance (96.8% accuracy)
โข
Non-contrast CT
โฆ
1st choice diagnostic alternative in the context of non-traumatic, acute abdominal pain
โฆ
For appendicitis, 97% accuracy
Contents
Tips for image setting: better to soft tissue contrast in plain CT
Pre-CT show patientโs general condition (edema, fluid collection, anemia)
Stone disease cases
Bowel disease including inflammation, obstruction
Urinary tract infection
Hemorrhage
Malignancy detection
Foreign body detection
F/U after enhanced CT
Challenge for vessel evaluation

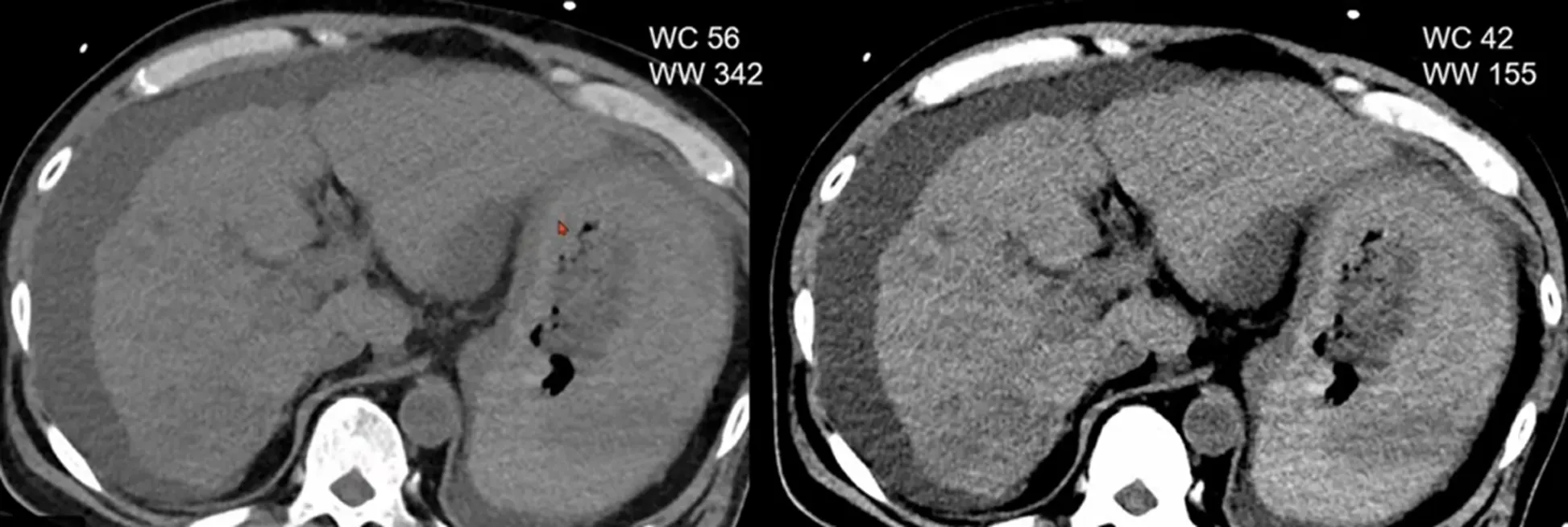

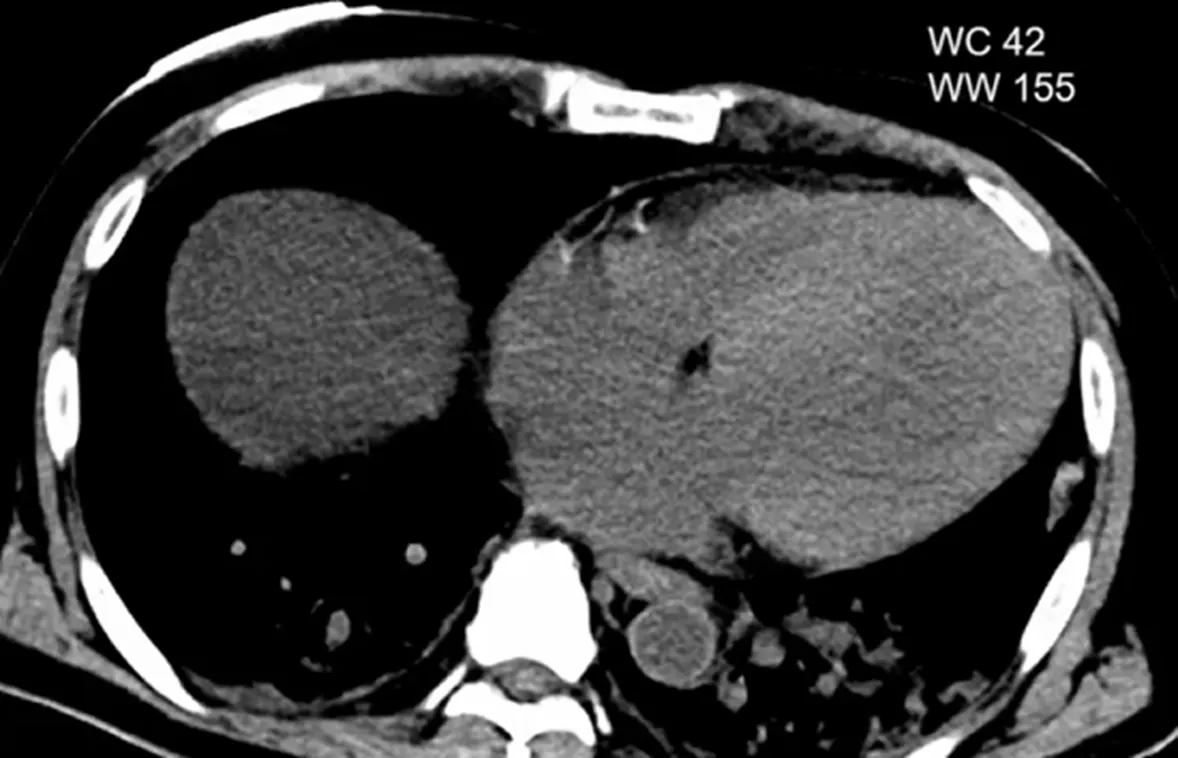

1. Window width, Window level Adjustment
What is patient problem ?
Anemia
Case 3
Case 4: Bowel inflammation, Obstruction
โข
F/82
โข
C/C: Fever (37.8 ) , dyspnea
โข
Hx: HTN, DL, h/o ICH, h/o type A IMH with pericardial effusion Recently, UTI with antibiotics treatment
โข
Lab: CRP 2.4mg/dL , WBC 33k
Colitis with specific cause (Pseudomembranous colitis by C.difficile)
Enterocolitis

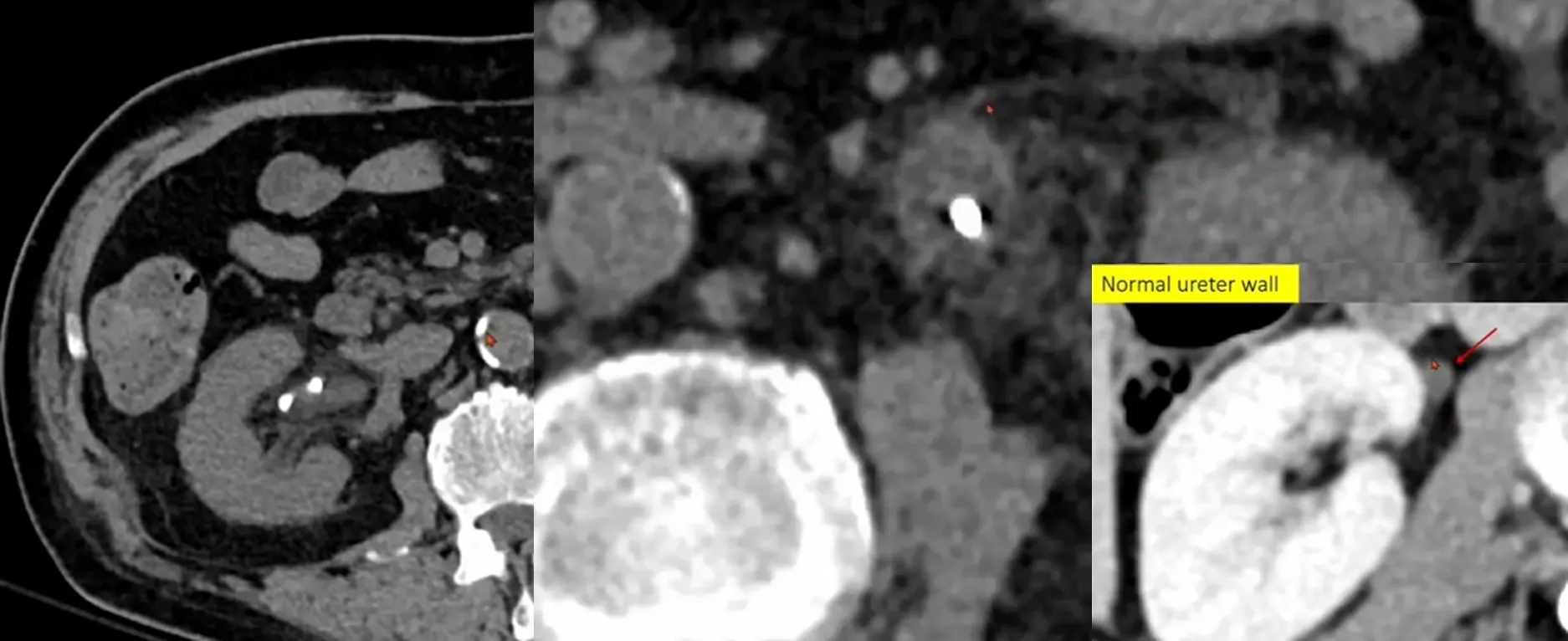

Case 5: Urinary tract infection
โข
M/77
โข
C/C: Lt. PCN remove site leakage, no self voiding
โข
Hx : bladder cancer s/p Op with neobladder
Case 6
โข
M/76
โข
C/C: epigastric pain
โข
Hx: BPH, CAOD, COPD, HTN, Aortic stenosis s/p AVR
โข
Lab
WBC 18k (74.1%) , CRP 0.5
AST/ALT 137/74, T.bil/D.bil 1.7/0.5 ALP/rGT 36/861
GB attenuation ๋์๋ณด์ - Acute cholecystitis with sludge
Next day: revisit ER
โข
C/C : Abdominal pain aggravation , dyspnea
โข
Lab
WBC 25k (90.6%) ร 18k (74.1%)
CRP 12.3 mg/dL
Hb 10.9 (4PM) ร 11.5 (1PM) ร 12.9 (9AM) ร 14.7 (1day ago 7AM)
PT(INR) 4.34

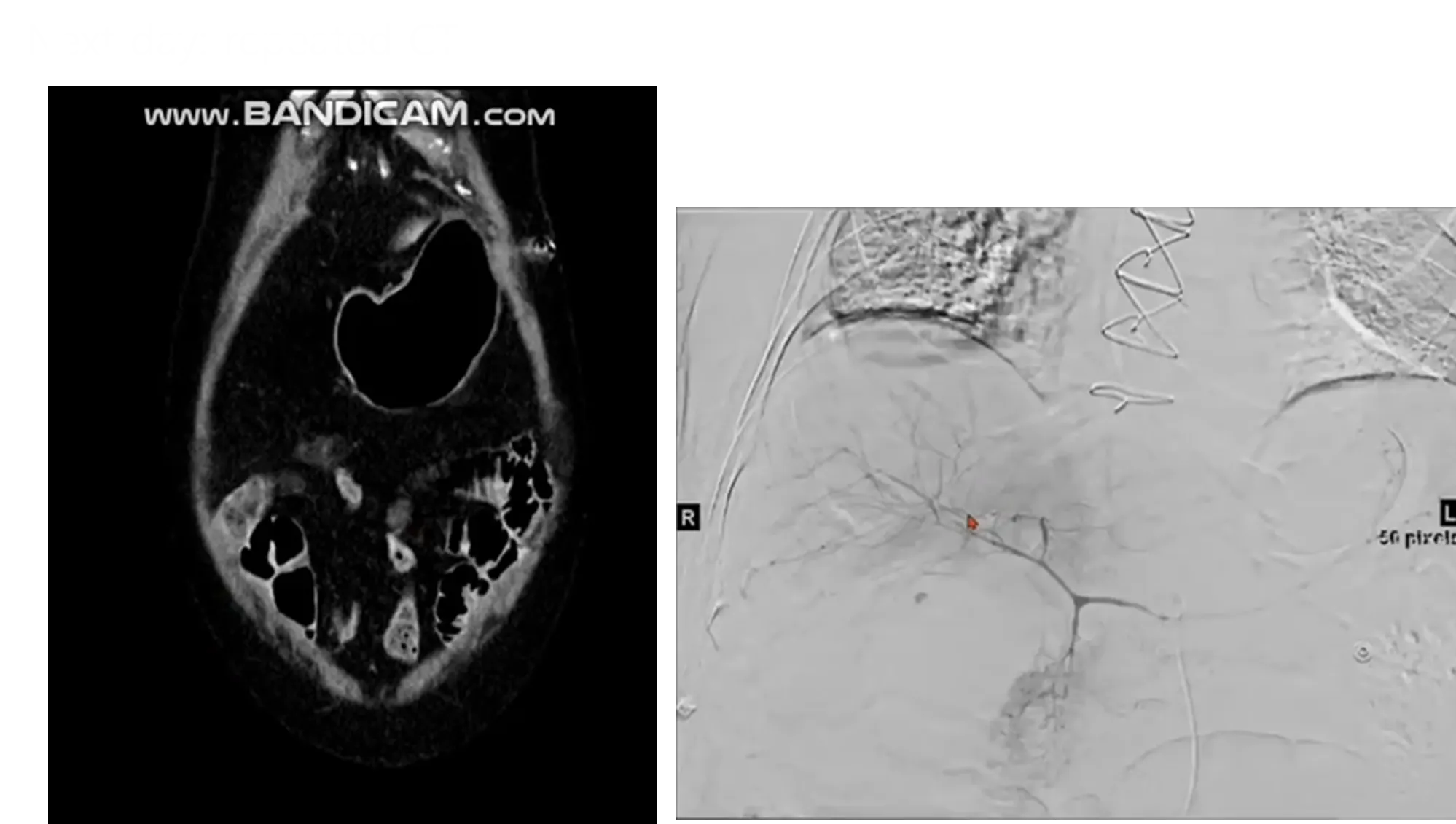

Next day: repeated CT
์๊ณ ๋ณด๋ hemobilia ํ์
Hemorrhage ๊ฐ ์๊ฐ์ ๋ฐ๋ผ attenuation ๋ฌ๋ผ์ ธ์ .. Layered pattern
Contrast agent ๊ฐ Kidney function ์์ข์๋ bile excretion ๋ ํจ
Hemorrhagic cholecystitis
โข
Rare, life-threatening condition that can lead to GB perforation
โข
End stage of acalculous cholecystitis
โข
Necrosis of the gallbladder wall & pseudoaneurysm formation of the cystic artery
โข
Subsequent rupture and acute bleeding into the gallbladder
โข
Acknowledged causes: blunt trauma, bleeding tendency, GB malignancy
โข
Symptoms easily confused with acute calculous cholecystitis
+hemobilia / hematemesis as blood drains into the GI tract
Biliary stones or impacted sludge may mimic hemobilia and can present a ย diagnostic pitfall โ clinical correlation is necessary
Case 7
โข
77/M
โข
C/C: fever, RUQ pain
โข
Hx: thymoma s/p excision
GB cancer with acute cholecystitis

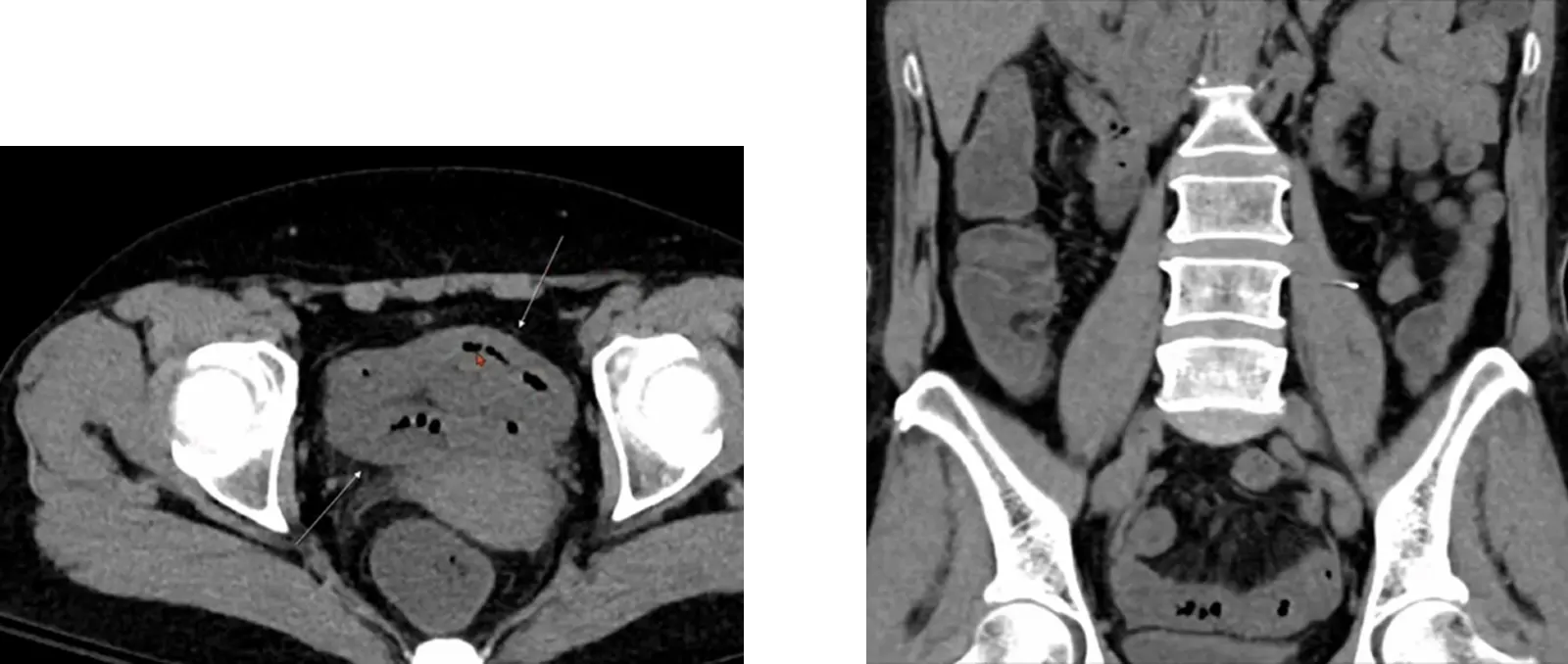

Case 8
โข
F/51
โข
C/C: LLQ abdominal pain for 7 days
โข
Hx: HTN, DM, LC (alcohol, fatty change), ectopic pregnancy s/p Op
โข
Refer from outside hospital due to surgery
โข
Patientโs Symptom: RLQ pain 1week ago ร migration of pain to LLQ two days ago
โข
Hx of swallowing of fish bone (?) at 10 days ago
โข
Temporary reading: One foreign body at posterior side of distal descending colon with localized peritonitis

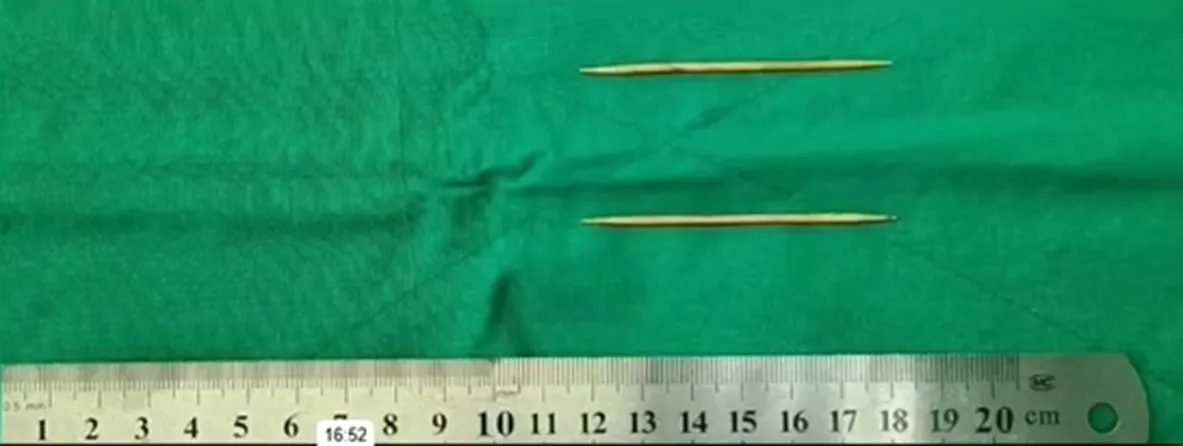

Op finding
โข
One toothpick at anterior wall of descending colon with penetration
โข
Another toothpick at posterior wall of descending colon with penetration to retroperitoneum
โข
Closure of micro-perforated descending colon
โข
Toothpicks and cocktail sticks have the greatest propensity for migrating into any of the adjacent organs leading to fistulation and abscess formation
โข
Toothpick can be difficult to perceive on CT, depending on the type of wood
โข
Repeat non-contrast CT study will improve the diagnostic confidence
โข
Multiplanar, three-dimensional reconstructions often be useful
Case 9
โข
F/87 C/C: hematemesis
โข
Hx: HTN, DM, Asthma, h/o MI, A.fib
โข
Lab : WBC 30k , Hb 7.9 , CRP 6.9 , INR 1.7
โข
EGD
Acute hemorrhagic gastritis, no current bleeding
R/O gastric angiodysplasia, body
โข
Aggravation of abdominal pain โ F/U with non-contrast CT

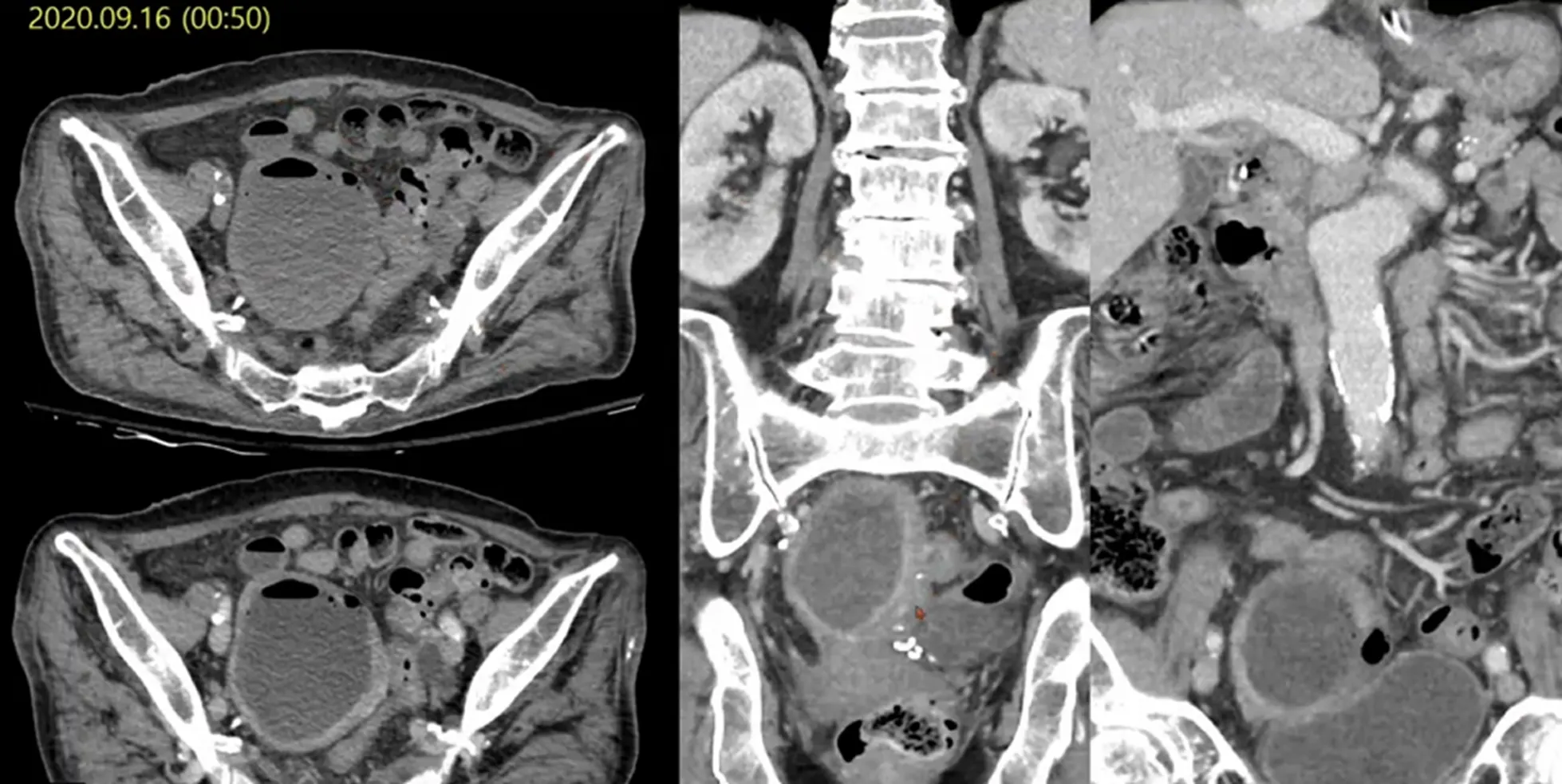

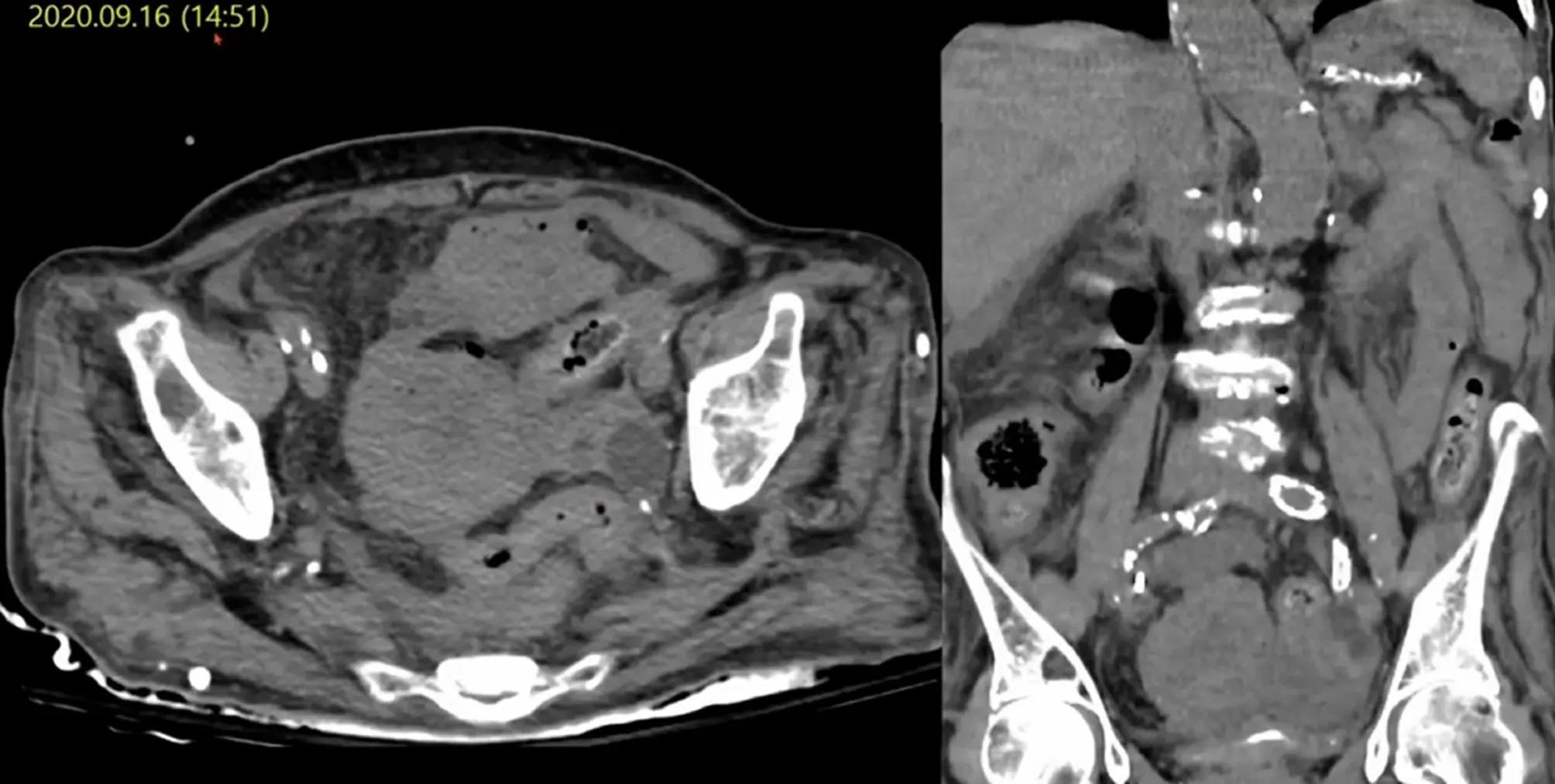

Uterus rupture
Uterine rupture by inflammation
โข
Etiology
โฆ
Trauma
โฆ
Genetic disorder associated with uterine wall weakness
โฆ
Prolonged induction or augmentation of labor
โฆ
Overstretching of the uterine wall (multiple gestation pregnancy, uterine anomalies ..)
โข
Spontaneous rupture of pyometra causing peritonitis in elderly female
โฆ
Misdiagnoses are common , most frequent preoperative diagnosis is generalized peritonitis secondary to GI perforation

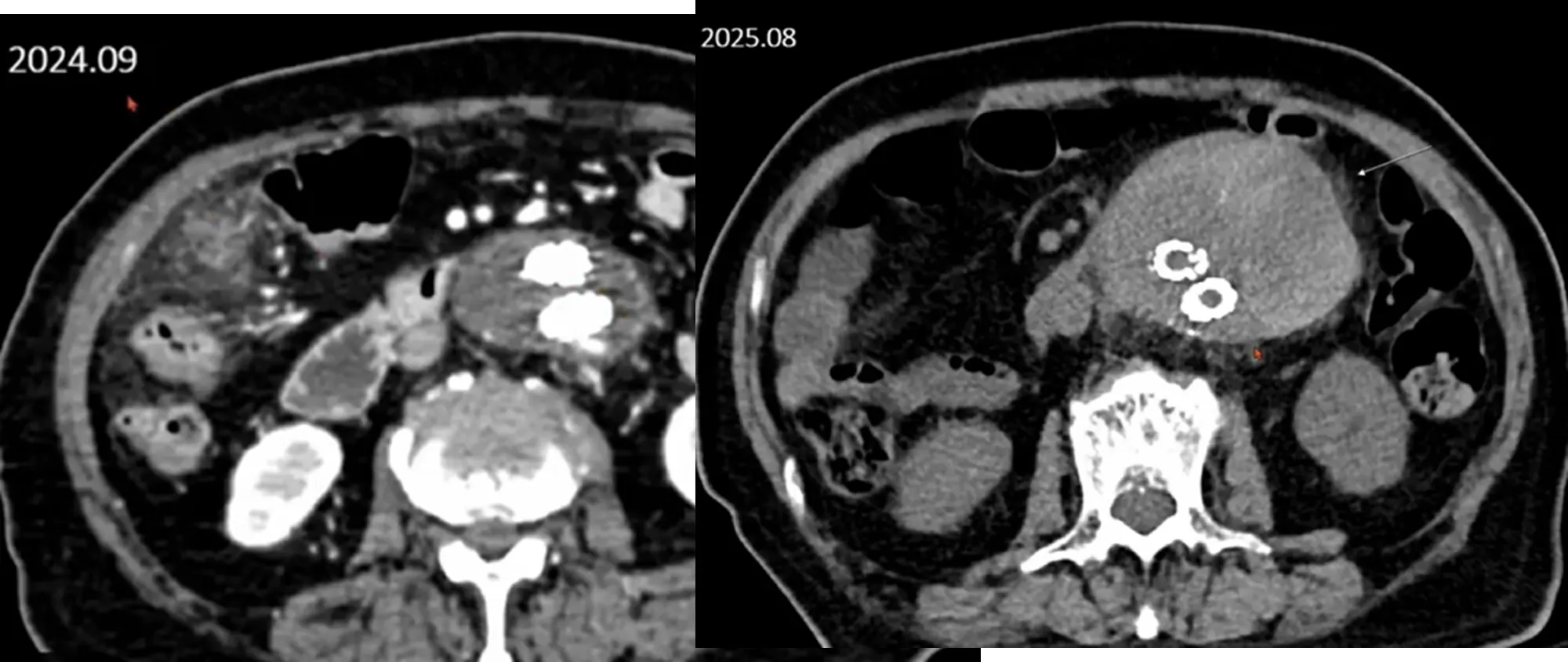

Case 10-1
โข
M/94
โข
C/C: abdominal pain
โข
Hx : sigmoid colon cancer s/p anterior resection , AAA s/p EVAR, s/p PTGBD insertion
โข
Lab: CRP 14.9mg/dL, Hb 9.6g/dL
Contained rupture
Case 10-2
โข
M/43
โข
C/C: Abdominal pain, aggravation
โข
Hx : h/o ureter stone
โข
Lab: within normal limit
Take home message
1.
Master normal anatomy, normal findings
2.
Compared with other part of body (Asymmetry ํ์ธ)
3.
Compared with previous image
4.
Compared with another Patient
5.
Most important clue is clinical setting
6.
You can find mor clues as much as you know (์๋ ๋งํผ ๋ง์ด ๋ณด์ธ๋ค)
